The equipment is mainly used for freeze-drying processing of food, such as instant noodles, porridge, soup, outdoor food and zero dairy products, snacks, ice cream, candy, etc. These products are rich in nutrition and diverse in taste, allowing freeze-dried food to enter our daily table.
With nearly three decades of technological expertise, our company offers customized equipment and automation solutions tailored to your needs. We provide a diverse range of freeze drying equipment for sale, with loading capacities customizable from 300 kg to 2,500 kg. Delivery, installation, and commissioning schedules are designed to meet your specific requirements, supported by our professional and responsive after-sales team. Contact us to discuss your needs!
| Project Model | Effective Drying Area | Standard Feed Capacity | Tray Size | Tray Form | Tray Quantity | Heating Plate Quantity | Heating Plate Size | Tray´s Feeding Form | Cylinder Internal Diameter | Cylinder Wall Thickness | Cooling Type | Cold Trap Max.Ice Absorb Capacity |
| ㎡ | Kg/warehouse.classes | mm | mm | mm | mm | Kg/warehouse.classes | ||||||
| TFDD0.25 | 0.25 | 2.5 | 340*245*37 | welded | 3 | 4 | 330*380*30 | Manual | 400*450 | 6 | Turn-off Cable and Natural Cooling | ＞3.5 |
| TFDX0.5 | 0.5 | 5 | 360*345*37 | 4 | 5 | 330*690*60 | 500*540 | 6 | ＞7 | |||
| TFDX1 | 1 | 10 | 610*410*37 | 4 | 5 | 670*480*30 | 550*600 | 6 | ＞14 | |||
| TFDX3 | 3 | 30 | 650*570*37 | 8 | 9 | 710*640*30 | 900*1100 | 6 | ＞40 | |||
| TFDX5 | 5.2 | 50 | 710*610*37 | One-time Impact Briquette | 12 | 13 | 770*680*30 | 1100*1400 | 6 | ＞67 | ||
| TFDX10 | 10.4 | 100 | 710*610*37 | 24 | 13 | 770*1290*30 | 1100*1400 | 6 | ＞135 |
In addition to Conditioning and Processing Food Freeze-Drying Equipment, we offer a wide variety of freeze dried food equipment for sale to suit diverse processing needs. Contact us to discuss your specific requirements!
The heating mode of TFDX freeze-drying equipment is electric heat exchange type. When heating up, the water in the heating tank is heated by the electric heating rod, and the hot water is sent to the heating plate by the pump; When cooling down, the electric heating rod is closed, and the water in the heating pipe is cooled by the air-cooled condenser.

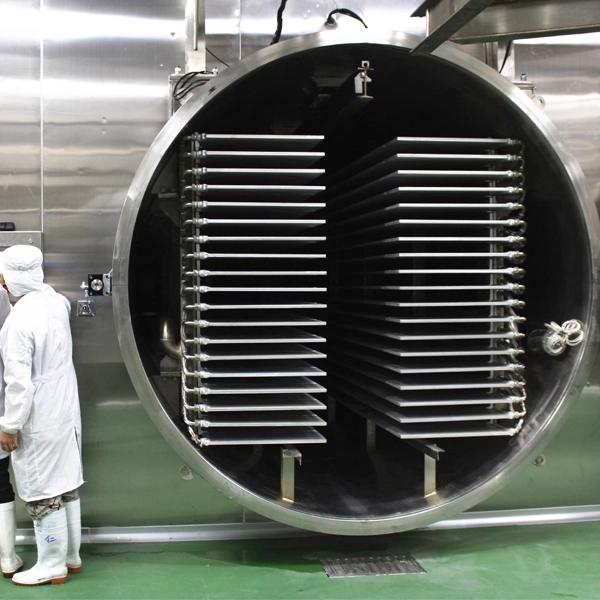

The TFDX freeze-drying bin is a horizontal cylinder, and the freeze-drying bin body is made of carbon steel Q235-A and stainless steel SUs304. The surface of the carbon steel bin body is sprayed with imported ship drinking water paint, the surface of the stainless steel bin body is polished, and the external surface of the freeze-dried warehouse is insulated with rubber and plastic sponge.
TFDX heating plate is made of plate fin heat exchanger by anodic oxidation. Inside is heating wire and magnesium oxide filler, resistance value changes little with temperature, uniform heating, high radiation efficiency.
There are two kinds of material pallets: welding molding and one-time stamping molding, both made of edible aluminum alloy, surface anodizing treatment, non-stick tray, tray in and out of the bin for manual delivery.
