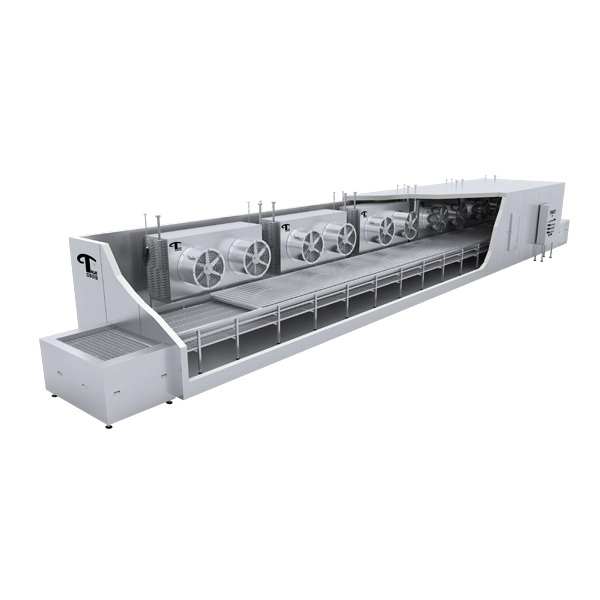

Mesh belt freezers represent a highly efficient method of placing products on a conveyor belt to achieve superior heat dissipation and rapid freezing through high-pressure air blowing. As a versatile category of IQF equipment, these systems can be configured as single, double, or multi-layer mesh belts, as well as impact and ultra-low temperature models. It is mainly used for quick freezing of conditioning food (dumplings, rice dumpling, steamed stuffed buns), aquatic products, meat, poultry products.
 Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Motor Power | Cooling Capacity | Belt width | Inlet/outlet length/height | Liquid/Gas out Pipe Diameter | Diameter Of Water Defrosting Pipe | Water Defrosting Quantity |
| Type | Kg/h | L*W*H mm | mm | KW | KW | mm | mm | mm | mm | m3/h |
| TNF250-1220 | 250 | 10590*2950*2720 | 7890 | 7 | 61 | 1220 | 1350/985 1350/750 | 2-DN25/DN65 | 2-DN50 | 15.7 |
| TNF500-1220 | 500 | 17610*2950*2720 | 14910 | 13.5 | 93 | 1220 | 4-DN25/DN65 | 4-DN50 | 23.9 | |
| TNF500-1530 | 500 | 15270*3250*2720 | 12570 | 11.8 | 91 | 1530 | 3-DN25/DN65 | 3-DN50 | 23.4 | |
| TNF750-1530 | 750 | 21120*3250*2720 | 18420 | 24 | 130 | 1530 | 5-DN25/DN65 | 5-DN50 | 33.4 | |
| TNF750-2030 | 750 | 16440*3750*2720 | 13740 | 19.6 | 125 | 2030 | 4-DN25/DN65 | 4-DN50 | 32.1 | |
| TNF1000-2030 | 1000 | 21120*3750*2720 | 18420 | 24.2 | 155 | 2030 | 5-DN25/DN65 | 5-DN50 | 39.8 | |
| TNF1000-2530 | 1000 | 17610*4350*2720 | 14910 | 21.8 | 152 | 2530 | 6-DN25/DN65 | 6-DN50 | 39.1 | |
| TNF1500-2530 | 1500 | 23460*4350*2720 | 20760 | 38.3 | 221 | 2530 | 8-DN25/DN65 | 8-DN50 | 56.8 | |
| TNF1500-3030 | 1500 | 21120*5910*2720 | 18420 | 32.1 | 222 | 3030 | 10-DN25/DN65 | 10-DN50 | 57 | |
| TNF2000-3030 | 2000 | 25800*5910*2720 | 23100 | 44.4 | 285 | 3030 | 14-DN25/DN65 | 14-DN50 | 73.2 |
| TNFD Series Ordinary Double-net Belt Individually Quick Freezer Performance Parameter List | ||||||||||
| Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Motor Power | Cooling Capacity | Belt width | Inlet/outlet length/height | Liquid/Gas out Pipe Diameter | Diameter Of Water Defrosting Pipe | Water Defrosting Quantity |
| Type | Kg/h | L*W*H mm | mm | KW | KW | mm | mm | mm | mm | m3/h |
| TNFD500-1220 | 500 | 10590*5675*2720 | 7890 | 14.1 | 123 | 1220*2 | 1350/985 1350/750 | 4-DN25/DN65 | 8-DN50 | 31.6 |
| TNFD1000-1220 | 1000 | 17610*5675*2720 | 14910 | 26.4 | 186 | 1220*2 | 8-DN25/DN65 | 8-DN50 | 47.8 | |
| TNFD1000-1530 | 1000 | 15270*6275*2720 | 12570 | 23.4 | 183 | 1530*2 | 6-DN25/DN65 | 6-DN50 | 47 | |
| TNFD1500-1530 | 1500 | 21120*6275*2720 | 18420 | 33.4 | 244 | 1530*2 | 10-DN25/DN65 | 10-DN50 | 62.7 | |
| TNFD1500-2030 | 1500 | 16440*7275*2720 | 13740 | 27.9 | 238 | 2030*2 | 8-DN25/DN65 | 8-DN50 | 61.1 | |
| TNFD2000-2030 | 2000 | 21120*7275*2720 | 18420 | 34.2 | 294 | 2030*2 | 10-DN25/DN65 | 10-DN50 | 75.5 | |
| TNFH Series Impact Net Belt Individually Quick Freezer Performance Parameter List | ||||||||||
| Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Motor Power | Cooling Capacity | Belt width | Inlet/outlet length/height | Liquid/Gas out Pipe Diameter | Diameter Of Water Defrosting Pipe | Water Defrosting Quantity |
| Type | Kg/h | L*W*H mm | mm | KW | KW | mm | mm | mm | mm | m3/h |
| TNFH350-1220 | 350 | 13580*3000*3200 | 10230 | 29.2 | 93 | 1220 | 2000/1010 1350/770 | 4-DN25/DN65 | 8-DN40 | 23.9 |
| TNFH500-1220 | 500 | 17090*3000*3200 | 13740 | 41.6 | 121 | 1220 | 6-DN25/DN65 | 6-DN40 | 31.1 | |
| TNFH800-1530 | 800 | 20600*3300*3200 | 17250 | 58.03 | 168 | 1530 | 6-DN25/DN65 | 12-DN40 | 43.2 | |
| TNFH1000-1530 | 1000 | 24110*3300*3200 | 20760 | 69.9 | 200 | 1530 | 8-DN25/DN65 | 16-DN40 | 51.4 | |
| TNFHD Series Impact Double-net Belt Individually Quick Freezer Performance Parameter List | ||||||||||
| Item | Nominal Freezing Capacity | Outline Dimension | Cabinet Length | Motor Power | Cooling Capacity | Belt width | Inlet/outlet length/height | Liquid/Gas out Pipe Diameter | Diameter Of Water Defrosting Pipe | Water Defrosting Quantity |
| Type | Kg/h | L*W*H mm | mm | KW | KW | mm | mm | mm | mm | m3/h |
| TNFHD700-1220 | 700 | 13580*5775*3200 | 10230 | 58.1 | 186 | 1220*2 | 2000/1010 1350/770 | 8-DN25/DN65 | 8-DN40 | 47.8 |
| TNFHD1000-1220 | 1000 | 17090*5775*3200 | 13740 | 82.3 | 241 | 1220*2 | 12-DN25/DN65 | 12-DN40 | 61.9 | |
| TNFHD1500-1530 | 1500 | 19430*6375*3200 | 16080 | 104.8 | 314 | 1530*2 | 12-DN25/DN65 | 24-DN40 | 80.6 | |
| TNFHD2000-1530 | 2000 | 24110*6375*3200 | 20760 | 137.8 | 399 | 1530*2 | 16-DN25/DN65 | 32-DN40 | 102.5 | |
Type of Net Belt: Single net belt, Double net belt, multilayer net belt, percussive net belt and ultra-low temperature net belt.
According to the material, different mesh belt forms can be selected: Stainless steel mesh belts include diamond mesh, herringbone mesh, and zigzag mesh; Plastic mesh belts are also available.
This industrial freeze drying equipment have an extremely wide scope of application. It is generally used for quick freezing processing of prepared food such as dumplings, glue puddings, steamed buns with stuffing, etc.as well as applicable to individually quick freezing processing of aquatic products, meat products and poultry products.
